Radio broadcasting and filming studios

We completed the installation of a radio broadcasting studio and a film studio at the school.
Below we describe the equipment and tasks that can be performed in these studios.
A radio broadcasting studio as a school center for managing the broadcast of a musical signal indoors and outdoors. In fact, this studio can accommodate three people, two of whom talk into a microphone, and the third plays a synthesizer. This is not the maximum number, you can also accommodate up to 5 people.

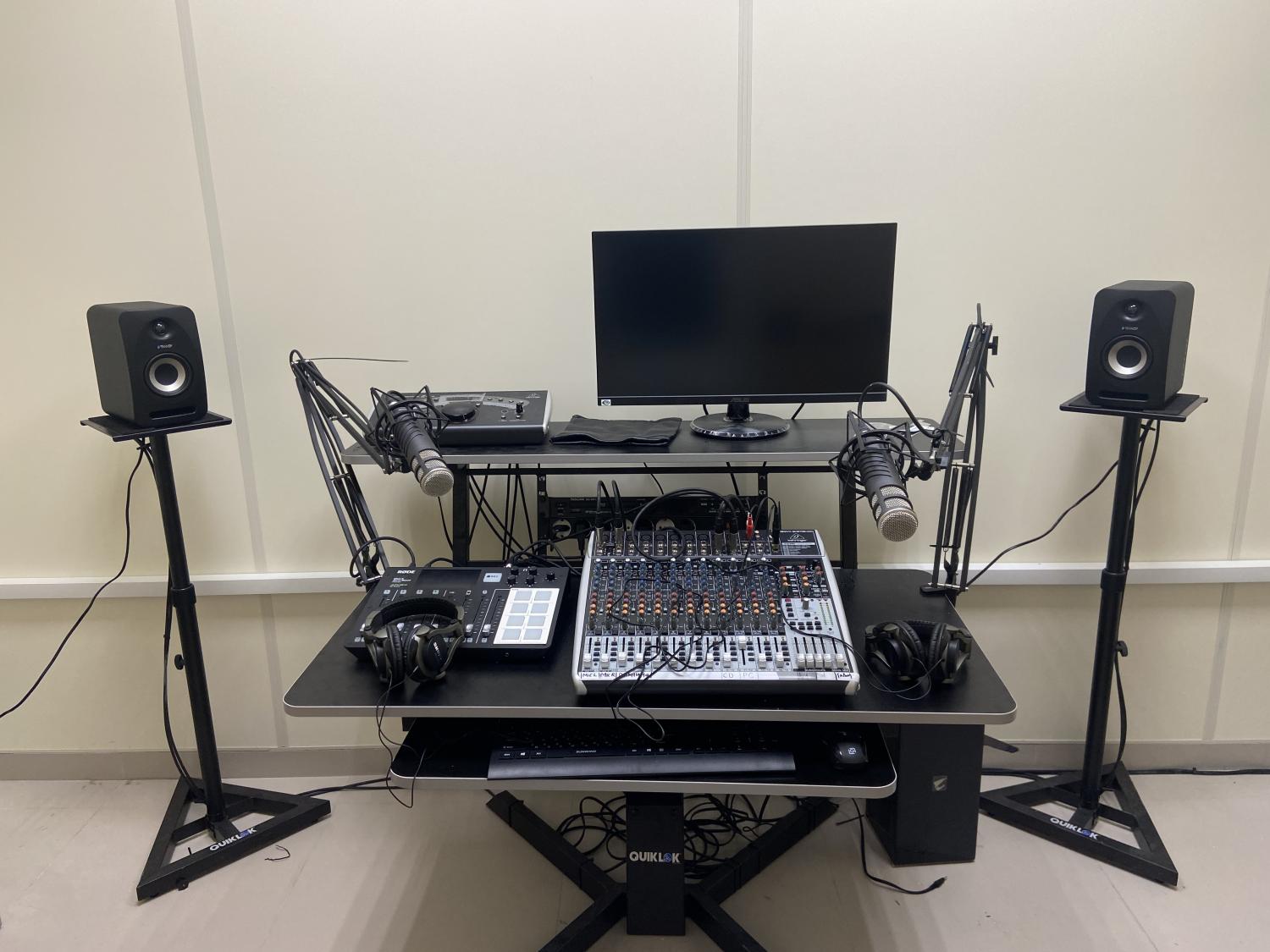

The following equipment was placed in the radio broadcasting studio:

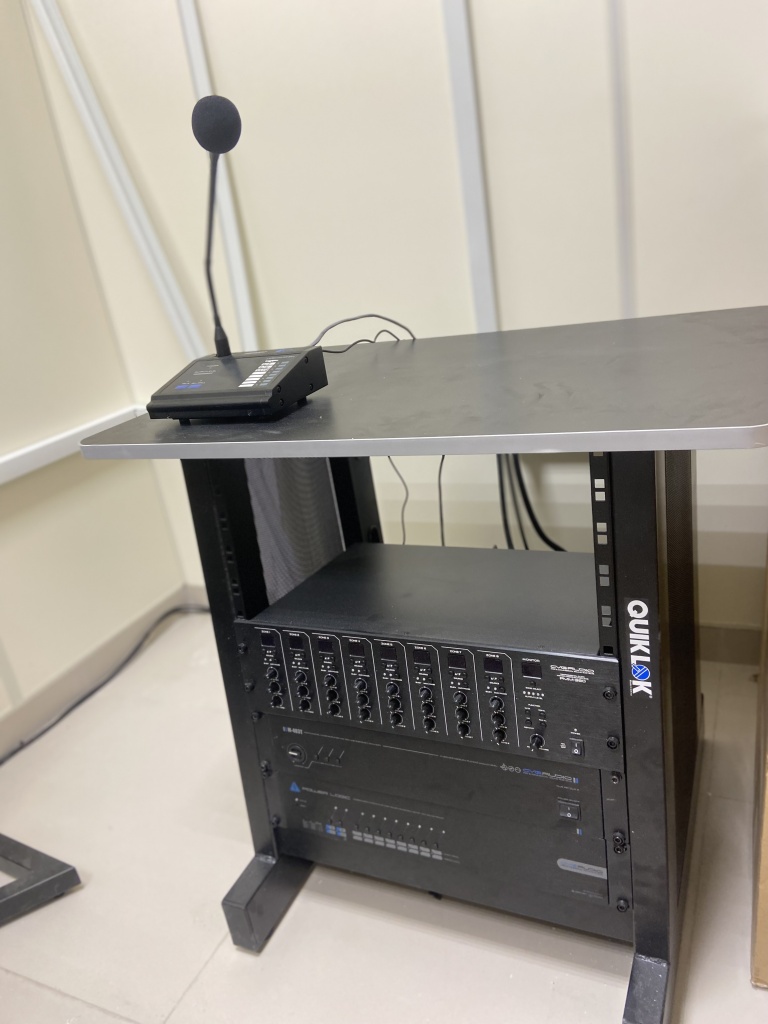

CVGaudio MCP-8 - desktop microphone console
CVGAUDIO PMM-380 - professional audio matrix preamplifier
CVGAUDIO M-483T - power amplifier
QUIK LOK Z460 - desktop
KORG i3 MB - workstation (synthesizer)
GIGABYTE GB-AMSI9N8I-2051 - computer
ASUS VA27DCP 27" - monitor
RODE Caster Pro - sound card
TASCAM BD-MP1 - multimedia player
Behringer QX2442USB - analog mixer
Behringer CONTROL2USB - studio controller
Shure SRH550DJ - headphones

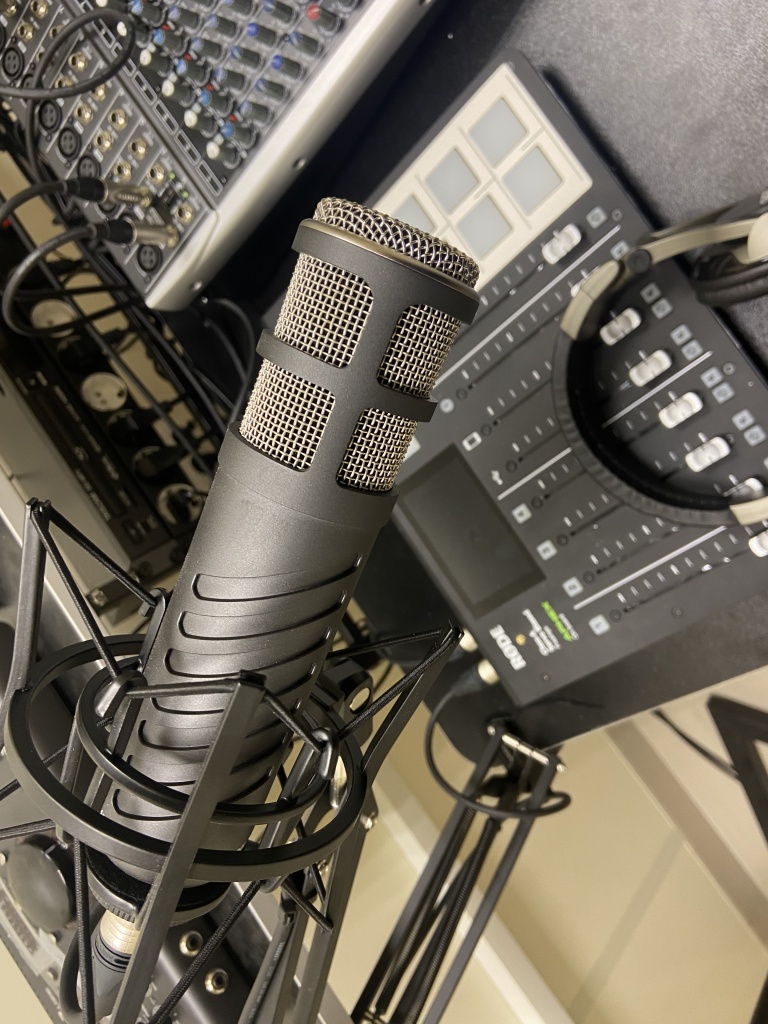

RODE Procaster - cardioid microphone
RODE PSM1 - anti-vibration mount
TANNOY REVEAL 402 - active near-field monitor
QUIK LOK Z612BKEU - 12-height rack

This set of equipment will allow you to record small voice announcements for everyday inclusion in the broadcast. It will also allow you to broadcast a dialogue between two interlocutors with the ability to play it on a synthesizer, as well as play jingles from the RODE Caster Pro remote control.
Background music from a computer can be played without routing through the remote control.

Horn loudspeakers ensured uniform coverage of the area in front of the main entrance to the school, which allows for assemblies and celebrations.

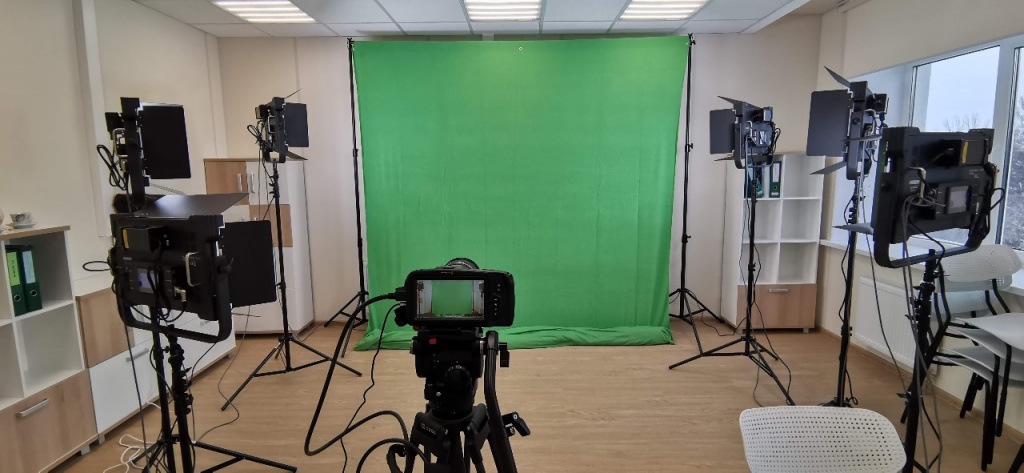

The film studio is located in a separate room and will allow you to record videos and educational materials for school.
The chromakey background makes it easy to edit the captured video material on the server.

The following equipment was used to create a school film studio:

Logovision EPCLV-4200LV is a video workstation with a built-in video remote control and audio interface.
Logocam GL100-DMX BICOLOR V - studio lamp
Logocam OZ-5CF2S - tripod kit
Logocam CDA-12/24 - universal analog-digital light control panel
BLACKMAGIC CINECAMPOCHDEF6K - cinema camera
Canon EF-S 17-55mm f/2.8 IS USM - lens
Lensgo DOUBLE 338C WITH SIGNAL AMPLIFIER - 2-channel radio microphone
Logocam LS-9/290 - light tripod
Logocam 132 GREEN SCREEN 9 X 20FT WRINKLE RESISTANT BACKDROP - green chromakey background
Micro Converter SDI to HDMI 3G wPSU - micro converter
Falcon Eyes B-8510/H - background installation system
Behringer QX1222USB - analog mixing console
Shure SRH240A-BK-EFS - headphones

With the above equipment, the film studio receives a multifunctional film set with Internet broadcasting (streaming).
All technologies in this project were developed by our specialists
