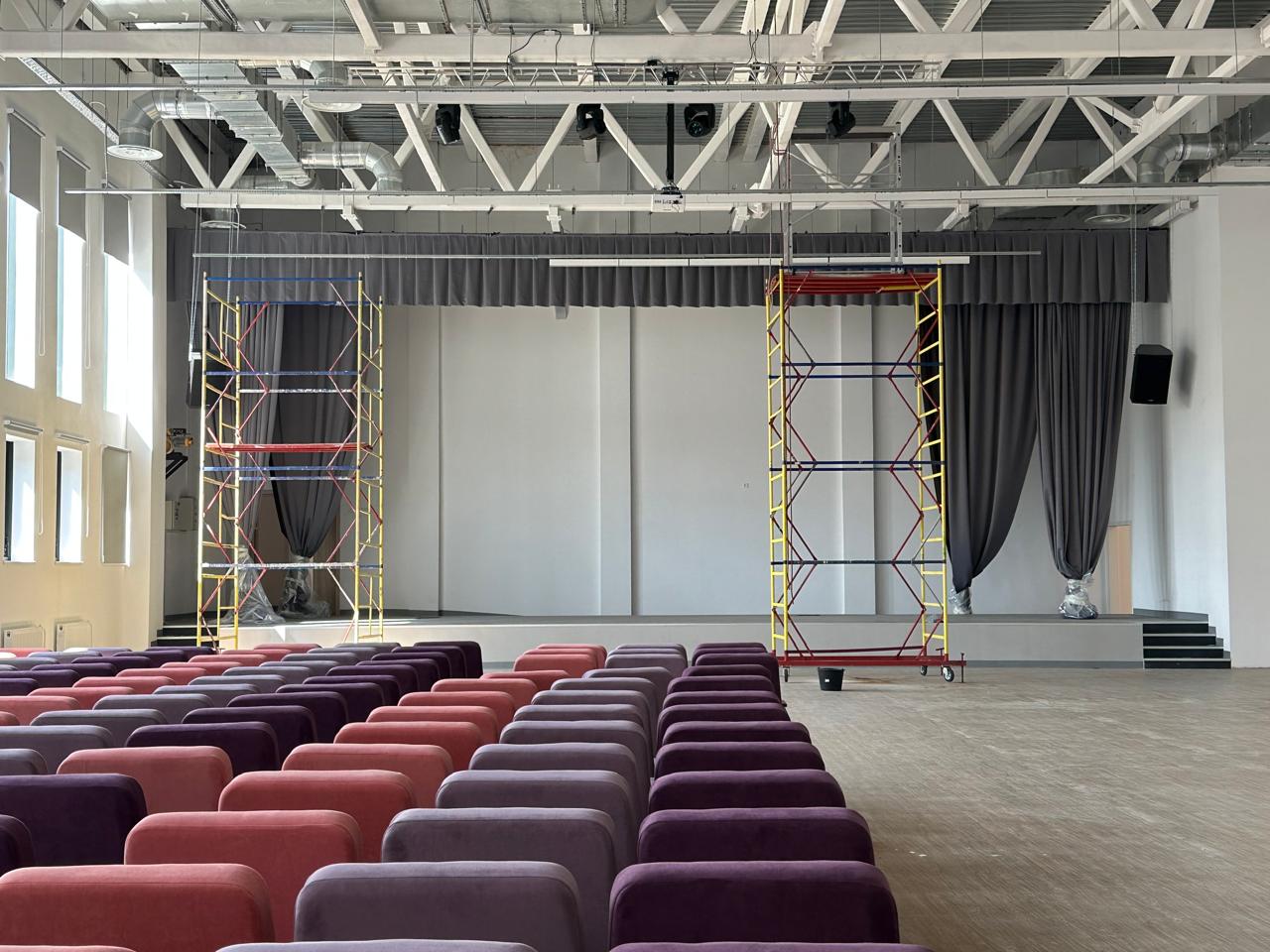

Acoustics Delta provides professional equipment for school auditoriums, assembly halls, cultural spaces and multipurpose venues. The equipment list includes video projection systems, sound reinforcement, stage lighting, stage mechanics, stage drapery, furniture, control systems, power distribution, cabling and auxiliary technical components required for a complete AV installation.

Brand / Manufacturer	Model / Item Name	Description and Technical Specifications
Video Projection Equipment
Lumien	Master Large Control LMLC-100116	Projection screen, matte white, motorized, front projection, 16:10 aspect ratio. Screen fabric width 485 cm, height 303 cm, viewing area 495×320 cm. Matte White FiberGlass fabric, gain 1.0, remote control included, ceiling mounting. Case size 5145×168×202 mm, weight approx. 75 kg.
Lumien	LCB-202	Screen control box: IR and RF receiver, IR and RF remote controls, wall switch, dry contacts and 12 V trigger receiver.
Panasonic	PT-MZ10KLBE	Multimedia laser 3LCD projector, brightness 10 000 ANSI lm, resolution 1920×1200 (WUXGA), 16:10 aspect ratio, power consumption 800 W. Interfaces: HDBaseT, HDMI; power supply 100–240 V ±10%, 50/60 Hz. Dimensions 650×185×440 mm, weight approx. 22.3 kg.
Panasonic	ET-EMS600	Lens for PT-MZ10KL/MZ13KL/MZ16KL projectors. Throw ratio 1.35–2.10:1, focal length 29.9–46.32 mm. Dimensions 173×130×327 mm.
Wize Pro	PRXL610A	Ceiling mount for projector installation. Maximum load up to 100 kg. Pole length: min. 1677 mm, max. 3007 mm.
Custom Assembly	High-Performance System Unit	PC with USB keyboard and mouse, internal Blu-Ray drive. HDD ≥ 1× with capacity ≥ 2 TB, SSD ≥ 2× with capacity ≥ 480 GB, at least 2 M.2 slots, PCIe and SATA3. Ports: ≥1× DisplayPort, ≥1× HDMI, front-panel USB 3.2 Gen2 ≥2, USB 3.2 Gen2x2 ≥1. CPU: ≥12 cores / ≥20 threads, L3 ≥ 12 MB; discrete graphics card with ≥ 8 GB video memory. RAM: DDR5, ≥32 GB, module ≥16 GB, frequency ≥3200 MHz. Network: 1G Ethernet + 2.5G Ethernet, total ≥4× USB 3.2 Gen1 and ≥4× USB 2.0. Support for DVI-I/DisplayPort/HDMI/VGA output.
ASUS	SBW-06D5H-U	Optical Blu-Ray drive. Read speed: BD-ROM/BD-R/BD-RE up to 6×, DVD up to 8×, CD up to 24×. SATA interface, dimensions 149.4×144×14.7 mm.
Logitech	K280e	Wired keyboard: membrane type, slim design, island-style layout. USB connection, cable length 1.8 m, black colour.
Logitech	M90	Wired optical mouse. USB connection, scroll wheel and two buttons.
Samsung	F24T352FHI 24"	24" LCD monitor, resolution 1920×1080, refresh rate 75 Hz, 16:9 aspect ratio. Contrast ratio 1000:1, brightness 250 cd/m², response time 5 ms GTG. Viewing angles 178°/178°, VGA and HDMI inputs, power consumption 25 W. Dimensions with stand 539×425×232 mm.
ASUS	TUF Gaming Capture Box-CU4K30	External video capture card, PCIe x1 3.0 according to specifications. Maximum recording resolution 3840×2160, MPEG-4 recording format. Input/output 1: HDMI 2.0, 1080p60 HDR recording, pass-through signal up to 4K60 HDR / 1440p144 / 1080p240. Input 2: HDMI 1.4, 1080p60 recording. Supported resolutions: 2160p, 1440p, 1080p, 1080i, 720p, 576p, 480p. Requirements: Windows 10 x64, Intel i5-6xxx / AMD Ryzen 5 1600+ CPU, GTX1050/R7 560+ GPU, RAM ≥8 GB.
Kramer	VS-44H2A	4×4 HDMI matrix switcher. Outputs: 4× HDMI, S/PDIF RCA, 4× balanced stereo audio on removable terminal blocks. Ports: Ethernet RJ45, RS-232. Max. resolution 4K@60 Hz 4:4:4, bandwidth 18 Gbps.
AVClink	P20-W	PTZ IP camera for Full HD 1080 broadcasting, 60 fps. 20× optical zoom, H.265/H.264/MJPEG codecs. Interfaces: HDMI, Ethernet, RS-232/RS-422. Pan up to ±170°, tilt −30°…+90°.
AVClink	BR02	Shelf / bracket for PTZ camera installation.
AVClink	R50	Camera control panel, PTZ controller. 4D joystick, zoom button. Camera interfaces: Ethernet, RS-232, RS-422. Power consumption 0.6 W, dimensions 320×111.5×177 mm.
AVClink	HT-70	HDMI twisted-pair extender kit, transmitter + receiver, 4K@30 Hz support. TX: HDMI input/output, RJ45; RX: RJ45 input, HDMI output. Bandwidth 10.2 Gbps, transmission distance up to 70 m over Cat5e/6. IR transmission, PoC support, 12 V power supply, operating range 0…40 °C.
Kramer	PT-580T	HDMI over HDBaseT transmitter. Inputs: HDMI Type A, 3.5 mm mini-jack audio. Output: HDBaseT RJ45; ports: RS-232 DE9, IR mini-jack. Bandwidth 10.2 Gbps, max. resolution 4K@30 Hz. Power supply 12 V / 295 mA, dimensions 188×114×24 mm, weight 0.6 kg.
Kramer	TP-580R	HDMI over HDBaseT receiver. Input: HDBaseT RJ45; outputs: HDMI Type A, 3.5 mm mini-jack audio. RS-232 DE9 port. Bandwidth 10.2 Gbps, HDBaseT 1.0. Max. resolution 4K@30 Hz, power supply 12 V / 295 mA. Dimensions 188×114×24 mm, weight 0.14 kg.
Kramer	RK-3T-B	1U adapter for installing up to 3 Kramer devices in a 19″ rack. Dimensions 436×67×44 mm, 1U mounting, weight approx. 0.2 kg.
Zyxel	XGS2210-28HP-EU0101F	Managed Ethernet switch, 19″, basic speed 10/100/1000 Mbps. Switching capacity 128 Gbps. 24 PoE+ ports, PoE budget 375 W. Dimensions 440×330×44.5 mm, weight 5.06 kg, max. power consumption 453 W.
IPPON	Innova G2 Euro 3000	Uninterruptible power supply, online UPS. Active power 2700 W, apparent power 3000 VA. Input voltage 176–300 V, frequency 40–70 Hz, IEC320-C20 connector. Output: 4 Euro sockets with battery backup. Battery output voltage 220/230/240 V ±1%, frequency 50/60 Hz ±0.05 Hz. Short-circuit and overload protection.
Sound Reinforcement Equipment
Volta Audio	M-15	Passive full-range loudspeaker, power 500 W. Frequency range 50–20 000 Hz ±3 dB, coverage 90° H × 60° V. Impedance 8 Ohm, sensitivity 99 dB 1W/1m. LF 15″, HF driver 2″, dimensions 745×480×500 mm.
Volta Audio	RED LINE SUB	Passive subwoofer, power 700 W. Frequency range 32–250 Hz −10 dB, impedance 8 Ohm. Sensitivity 103 dB 1W/1m, 18″ LF driver. Dimensions 740×565×671 mm, weight approx. 67 kg.
Volta Audio	RED LINE FRAME	Frame for suspended and floor installation of RED LINE series loudspeakers.
Proel	KP560WH	Wall-mounted L-shaped bracket for loudspeakers with Ø35 mm tube. Maximum load 35 kg.
Volta Audio	M-12	Passive stage monitor. Frequency response −10 dB: 60 Hz – 20 kHz, maximum SPL 134 dB. Configuration: 12″ LF, 1″ HF, RMS power 500 W.
Volta Audio	PA-900	2-channel power amplifier. Output power per channel: 500 W / 8 Ohm, 1050 W / 4 Ohm. Frequency range 20–20 000 Hz, power supply 90–260 V 50/60 Hz. 2U form factor, dimensions 483×89×291 mm, weight approx. 23 kg.
Volta Audio	PA-1200	2-channel power amplifier. Output power per channel: 700 W / 8 Ohm, 1200 W / 4 Ohm. 2U, 483×89×291 mm, weight approx. 26 kg.
Volta Audio	PA-700	2-channel power amplifier. Output power per channel: 400 W / 8 Ohm, 700 W / 4 Ohm. 2U, 483×89×291 mm, weight approx. 22 kg.
Volta Audio	DSP 240 PRO	2×4-channel audio processor, 2 inputs, 4 outputs. Parametric EQ on inputs and outputs, 8 bands per input, 6 bands per output. Crossover up to 4 bands, delays up to 1000 ms, phase inversion, limiters, matrix. Control: front panel, USB, RS-232, RS-485, LAN; 1U, weight approx. 2.5 kg.
Behringer	QX2442USB	Analog mixing console, 16 input channels: 8 microphone inputs, 2 mono/line stereo channels, 2 stereo line channels, 4 mono channels. 38 output channels, 2 main + sends, Klark Teknik effects processor. USB interface for wireless systems and PC connection, built-in power supply.
Behringer	FBQ2496	2-channel digital feedback suppressor with LCD display. 2 inputs, 2 outputs, stereo/mono processing, selectable filter release time. Filter modes: speech, music, music/speech. Electronically balanced XLR and TRS inputs/outputs.
Volta	US-102	Vocal wireless system with cardioid handheld dynamic microphone. 600–636 MHz UHF range, frequency response 40–19 000 Hz, transmitter power 5 mW. Operating range up to 90 m. Holder and carrying case included.
Volta	DM-b58 SW	Dynamic vocal microphone with switch, cardioid polar pattern. Frequency range 50–18 000 Hz, impedance 200 Ohm, sensitivity −51.5 dBV/Pa 2.6 mV. 3-pin XLR connector, 5 m cable, holder and carrying case included.
Ultimate Support	PRO-R-T-F	Floor-standing boom microphone stand on tripod. Fixed boom length, folding legs, height 953–1651 mm. Microphone holder and carrying case included.
Volta	ABBEY ROAD	Studio closed-back wired headphones, dynamic type. Frequency range 10–26 000 Hz, sensitivity 101 dB, impedance 64 Ohm. 3.5/6.3 mm gold-plated connectors, weight approx. 285 g.
Ultimate Support	TS-70B	Aluminium tripod stands for loudspeakers, height 1270–1956 mm.
IMLIGHT	30U Rack Cabinet	19″ metal 30U rack cabinet with lockable door and rear panel. Dimensions 544×560×1397 mm.
IMLIGHT	000-20288	1U sliding shelf for rack cabinet.
IMLIGHT	00-53851	1U fixed shelf for rack cabinet.
AVClink	LX-PDU07	220 V power distribution unit for 19″ cabinets, 1U. 8 grounded sockets, 2 m input cable. Max. power 4.0 kW, rated voltage 220–250 V, 50 Hz, IP20, current up to 16 A.
Istok	C5	Electromagnetic converter, induction loop amplifier. Loop coverage area 350–600 m², THD ≤3%, frequency range 100–8000 Hz. Load 1–3 Ohm, current and temperature protection, overheating sensor 60 °C. 2 XLR audio inputs, microphone/line, separate adjustment and indication. Loop output via screw terminals, power supply 220 V 50 Hz, consumption up to 200 W. Dimensions 350×300×100 mm, weight approx. 6.3 kg.
Rodis	KA240 ng(A)-HF	Induction loop cable, 2-core cable 2×4.0 mm² made of oxygen-free copper M00. Outer diameter 10.5 mm, resistance 4.95 Ohm/km at 20 °C. Insulation and sheath: halogen-free thermoplastic elastomer.
IMLIGHT	20.20.10	Floor stage box with cover, box size 200×200×100 mm, black colour, without panel.
IMLIGHT	Panel 20.20.10	Panel for 20.20.10 floor box: 4× XLR3F, 1× XLR3M, 1× 4-pin Speakon.
Stage Lighting Equipment
Stage4	DMX PILOT 24/26	DMX control console, up to 24 fixtures with 26 channels each. Up to 36 programmable scenes, 8 faders, 24 channels, 2 PAN/TILT wheels. Modes: manual, auto, sound activation, PAN/TILT and RGBW effects library. USB port, dimensions 482×134×70 mm, weight approx. 2.2 kg.
IMLIGHT	SPLITTER 1-4	DMX splitter/booster with galvanic isolation. Input: 1× XLR 3-pin; outputs: 4× XLR 3-pin. Wall or truss mounting.
IMLIGHT	LTL Stage LED W150 V3	White LED theatrical wash light 3500 K, 3×50 W LED, total 150 W. Beam angle 80×80°, DMX-512 control, 2/3/4 channels, XLR-3. Power consumption ≤185 W, power supply 230 V ±10%, 47–63 Hz, natural cooling. Included: barn doors, power connector, filter frame.
Stage4	BROPAR-S 60x3X	RGB LED PAR fixture, 60×3 W, beam angle 26°. 220 V power supply, DMX-512 control, master/slave, auto mode, sound activation. Dimensions 265×213×117 mm, weight approx. 3.4 kg.
Stage4	BROSPOT 450Z	LED moving head with narrow beam, 450 W source. Beam angle 3°, zoom 5.6–32.1°, maximum illuminance 41 621 lx at 5 m. 18 gobos, DMX control, 3-pin XLR, LCD display. Power consumption 650 W, dimensions 520×480×660 mm, weight approx. 26.5 kg.
IMLIGHT	LTL Frenelledmz-pro w150 3000K	LED Fresnel spotlight, 120 W LED, 3000 K. Ø200 mm lens, beam angle 8–66°. DMX-512 control, 1/2 channels, power consumption 145 W, 220 V power supply. Dimensions 505×360×280 mm, weight approx. 13.7 kg.
TTS	KSP-1-2-KPC	I-shaped side lighting bracket for 2 fixtures, with KPC-3-2R-1F3 socket box, 2× Schuko, 1× XLR3F. Material: steel, black colour, fixture anti-slip protection. Height 610 mm, cantilever Ø40×470 mm, cross tube Ø40×600 mm, load up to 50 kg, weight 8.9 kg.
IMLIGHT	Q25/31-3000	Aluminium square truss 250×250 mm, length 3000 mm. Tube Ø40×2 mm, fixing size 140×140 mm.
IMLIGHT	H25-HOOK-38/51-BLACK	25 mm hook clamp with screw lock for Ø38–51 mm pipe. Allowable load 70 kg, black colour.
IMLIGHT	Safety Cable	1000 mm safety cable with carabiner, diameter 2 mm, allowable load 25 kg.
Stage Mechanics
TTS	PMZ-T	Front straight traveler curtain mechanism. Set includes: track body, 2 tracks, 2 master carriers, slave carriers 3/m, support, return and end pulleys, limiters, special washers, hardware, teaser pipe with mounting.
TTS	RMZ-T	Radial traveler curtain mechanism for cable drive. Similar set: track body, 2 tracks, carriers, pulleys, limiters, teaser pipe.
TTS	PMZ-T rear	Rear straight traveler curtain mechanism for cable drive. Set includes: track body, 2 tracks, master and slave carriers, pulleys, limiters, hardware, teaser pipe.
TTS	ZT-PMZ	Painted load-bearing embedded pipe 60×40×3 mm for PMZ mechanism.
TTS	ZT-RMZ	Painted circular load-bearing embedded pipe 60×40×3 mm for RMZ mechanism.
TTS	EK-DZ	Element for attaching the track to the embedded pipe.
TTS	KSA-2.5	Steel aviation cable 2.5 mm, double lay with metal core, GOST 2172-80. Breaking force 519 kg, load at 9k approx. 57 kg.
TTS	PDU-NRP-ZA	Remote control panel for constant-speed curtain system, analog control system, 1 remote control panel. Screw terminal connection, enclosure 164×144×80 mm, weight 0.8 kg.
TTS	LEZ-1.0-0.4-0.55	Electric winch for curtain drive, analog system. Pulling force 1000 N, speed 0.4 m/s, motor 0.55 kW, BGV C1 command device, manual drive. Dimensions 550×350×550 mm, weight approx. 40 kg.
TTS	LEZ-03 Bracket	Wall-mounting frame for LEZ/LEZR curtain winches, with protective guard. Dimensions 500×650×605 mm, weight approx. 14 kg.
TTS	SHU-NRP-ZAD1-3.7	Electrical control cabinet for constant-speed theatrical traveler winch, for motors up to 3.7 kW. Analog system, door-mounted control panel, connection for 1 remote control, overload protection. IP54 cabinet, dimensions 420×340×200 mm, weight approx. 10 kg.
TTS	TSH-60	Steel batten pipe Ø60×3 mm with plug, powder-coated black, length 12.02 m.
TTS	Clamp XJ-48-170	J-shaped clamp, height 170 mm, for Ø48 mm pipe, steel strip 40×5 mm, powder-coated black.
Stage Drapery
TTS	Traveler Curtain	Set of two curtains, 9×7.7 m each. Lined fabric, flame-retardant, GOST R 50810-95, hypoallergenic, blackout density 420 g/m², lining 140 g/m². Tie fastening, 3 pcs/m, fullness ratio 1.5.
TTS	Teaser 18×1.10 m	Teaser 18×1.1 m, fullness ratio 1.5. Lined fabric, flame-retardant, hypoallergenic, blackout density ≥250 g/m², lining 140 g/m².
TTS	Rear Traveler Curtain	Set of two curtains, 5×7.7 m. Lined fabric, flame-retardant, blackout density 420 g/m², lining 140 g/m². Tie fastening, 3 pcs/m, fullness ratio 1.5.
TTS	Border 18×1.20 m	Border 18×1.2 m, fullness ratio ≥1.5. Lined fabric, flame-retardant, face fabric ≥420 g/m², lining ≥140 g/m². Colour and design to be determined at the interior design stage.
TTS	Border 8.6×1.10 m	Border 8.6×1.1 m, fullness ratio ≥1.5. Material and requirements are similar to the previous border.
TTS	Leg Curtain 2×7.95 m	Leg curtains 2.0×7.95 m, 2 pcs. Lined fabric, flame-retardant, blackout density ≥250 g/m², lining ≥140 g/m². Tie fastening, 3 pcs/m, fullness ratio ≥1.5.
Furniture and Miscellaneous Items
BIG decor	Soft	Seat cushion pad 360×450×30 mm. PU foam filler, density 60–80 kg/m³, rigid base with fixing. Colour according to RAL palette, red marking.
LA REDOUTE INTERIEURS	Mitis	Chair for presidium area, dimensions 590×760×570 mm, seat 430×465×425 mm. Upholstery made of melange fabric, 100% polyester, PU filler: seat 25 kg/m³, backrest and armrests 18 kg/m³. Weight approx. 11 kg, colour to be selected at the interior design stage.
ArtMebel LLC	CB-00017152	Mobile folding table 1500×600×700 mm, compliant with GOST 22046-2016. MDF/laminated chipboard tabletop ≥22 mm, PVC edge, folding mechanism for vertical storage. Metal tube frame with powder coating, 2 castor supports with locking per upright.
ArtMebel LLC	Tribune-21	Speaker podium made of 16 mm laminated chipboard, with cable channel. Dimensions 600×600×1200 mm, colour according to interior design.
ArtMebel LLC	Work Desk-02	Operator desk made of 16 mm laminated chipboard with cable channel. Dimensions 1400×800×750 mm, colour according to interior design.
ArtMebel LLC	Mobile Pedestal-20	Mobile pedestal made of 16 mm laminated chipboard with cable channel and drawer lock. Dimensions 400×490×585 mm, colour according to interior design.
Factor LLC	Factor-30, art. 1939182	Operator chair on five-star base with armrests. Upholstery in Z, KB, JP, TW fabric series; seat width approx. 400 mm, depth 400–500 mm, height ≥400 mm. Smooth height adjustment, colour according to interior design.
Custom Manufacturing	Flagpole	Flagpole with cable hoisting mechanism, open/closed type, height ≥3000 mm. Material: stainless steel or polymer-coated steel, base with floor fixing, at least 2 carabiners.
Custom Manufacturing	Flag of the Russian Federation 1000×1500	Flag of the Russian Federation 1000×1500 mm made of polyester silk with eyelets for attachment to a flagpole.
