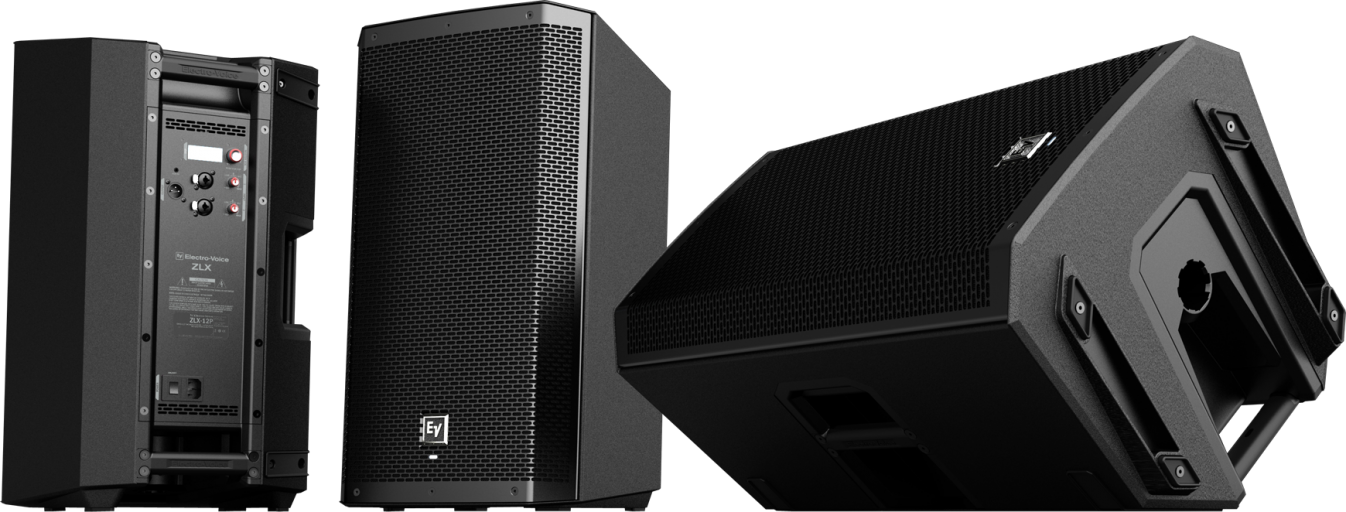

The ZLX Series models have an advantage over their competitors by introducing as many new features as possible into the development of this speaker segment. The functioning of the latest developments, control of the sound signal and quick selection of changes in sound characteristics all increase the convenience of working with this acoustics.

When choosing an active speaker system, first of all, the future user looks at the description and functionality described in the booklet, then only if possible, he can listen to the speaker system in a showroom or at a specialized music exhibition. Thus, the ZLX series of the manufacturer Electro-Voice was presented at the distributors’ stand in Moscow at the annual “Music Moscow” exhibition, which increased interest in choosing this series.

The new design improves the speaker's compactness and portability. These sound systems are designed for mobile sound systems where it is necessary to have a quick connection method, various input connectors, as well as for stationary use, which helps with the optional ZLX-BRKT lyre.

The use of active and passive Electro-Voice ZLX acoustic systems can be varied from background sound on a beach or sports field, to use in a large-scale concert as a stage monitor. A special difference between the sound of the manufacturer Electro-Voice is the pronounced clear middle of the range of reproduced frequencies, which increases the level of speech intelligibility, and the ZLX is used for announcements or rallies.

The body has gained light weight due to durable plastic and the developed optimal amplifier for active speaker systems.

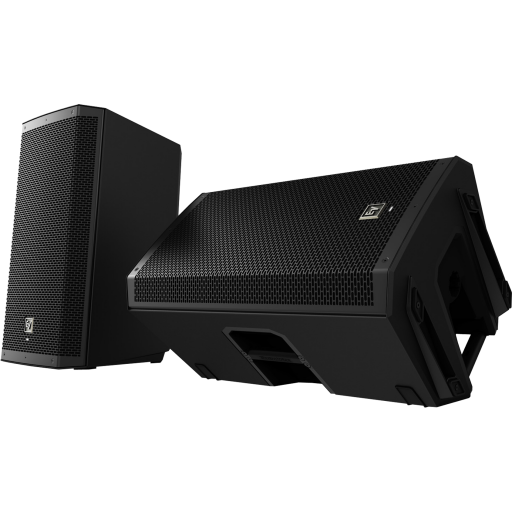

Electro-Voice ZLX-12P and ZLX-15P active speaker systems have a built-in DSP processor that allows you to easily change sound parameters.

Main characteristics of acoustic systems:

• ZLX-12P: 50 Hz–20 kHz; 126 dB max. SPL; 1000 W (Class D).

• ZLX-15P: 42 Hz–20 kHz; 127 dB max. SPL; 1000 W (Class D).

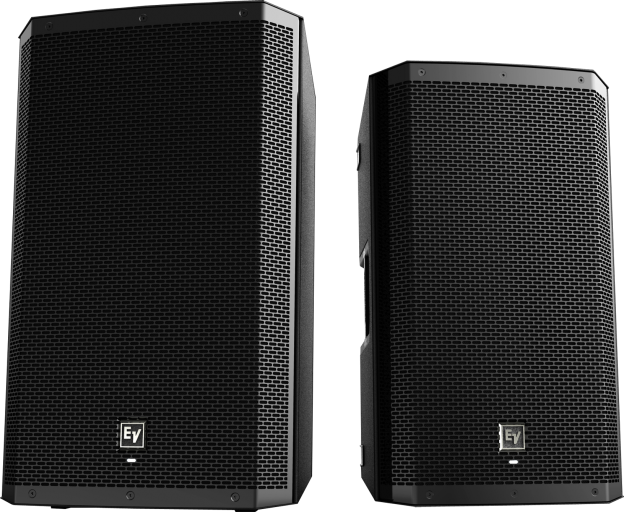

- 12" and 15" woofer for extended low-frequency response in a compact, lightweight package and titanium diaphragm high-frequency compression driver.

- LCD display and DSP processor control selector in which factory presets are installed for quick and accurate system setup.

- Input level indicators and separate amplifier controls for setting the optimal level.

- LED indicator on the front to indicate power on and limiter activation. Patented split front board design for superior driver timing alignment.

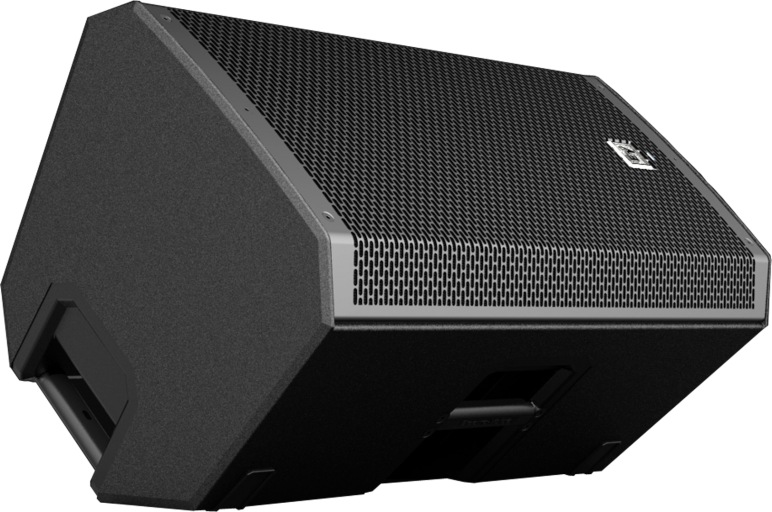

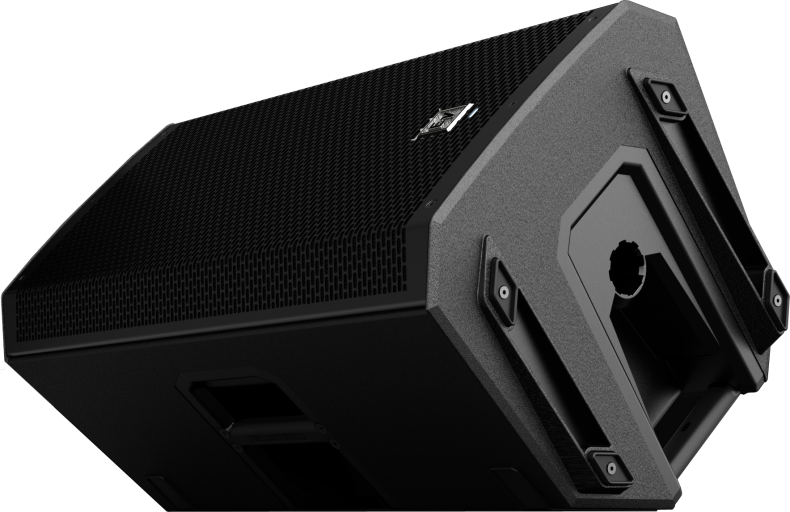

- Durable plastic construction with innovative handle design on top and bottom for easy tripod installation.

- LCD display allows you to optimally adjust the equalization taking into account the program and placement.

- Innovative industrial design ensures that the appearance matches the professional sound.

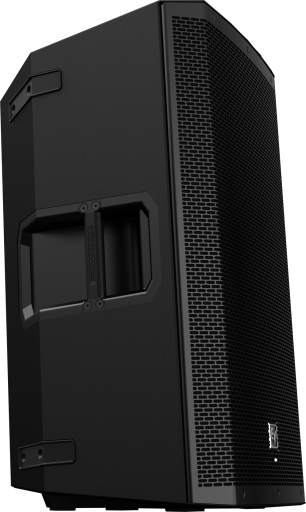

- Three handles, including two on the top and bottom, make it the most portable professional speaker on the market.

- Composite material construction is designed to last a long time and can withstand rough handling during transportation.

- EV offers best-in-class sound, design and DSP-LCD control, a continuation of EV's touring-class concert products.

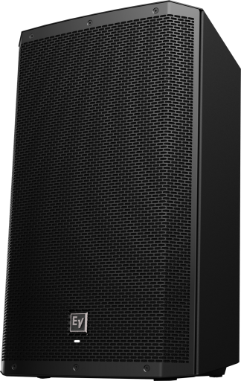

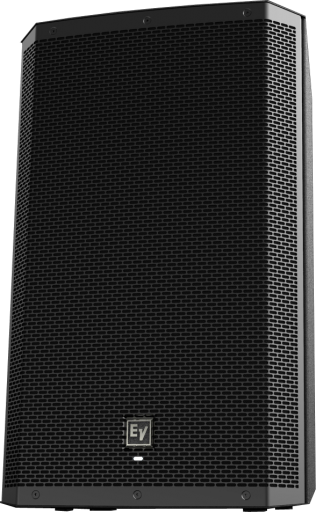

Passive Acoustic ZLX-12 – 12" Passive Loudspeaker

Compact and versatile loudspeaker using EV-developed drivers in a rugged housing. Mounted on a tripod or on the floor as a monitor, the ZLX produces powerful, clear sound -

the legendary "EV Sound", which is chosen by professionals.

- 12-inch woofer for powerful low-frequency output in a small cabinet and a high-frequency compression driver with a titanium diaphragm.

- Composite material construction is designed to last a long time and can withstand rough handling during transportation.

- Exclusive split front board design for superior driver timing alignment.

- Frequency band 55 Hz – 20 kHz.

- Long-term power 250 W, peak power – 1000 W.

- Sensitivity 95 dB, max. SPL 125 dB

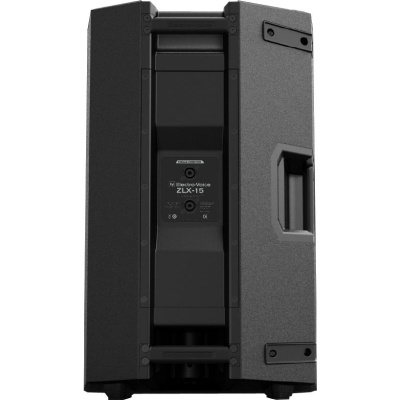

ZLX-15 – 15-inch passive loudspeaker.

- 15-inch woofer for powerful low-frequency output in a small cabinet and a high-frequency compression driver with a titanium diaphragm.

- Composite material construction is designed to last a long time and can withstand rough handling during transportation.

- Exclusive split front board design for superior driver timing alignment.

- Frequency band 44 Hz – 20 kHz.

- Long-term power 250 W, peak power – 1000 W.

- Sensitivity 96 dB, max. SPL 126 dB

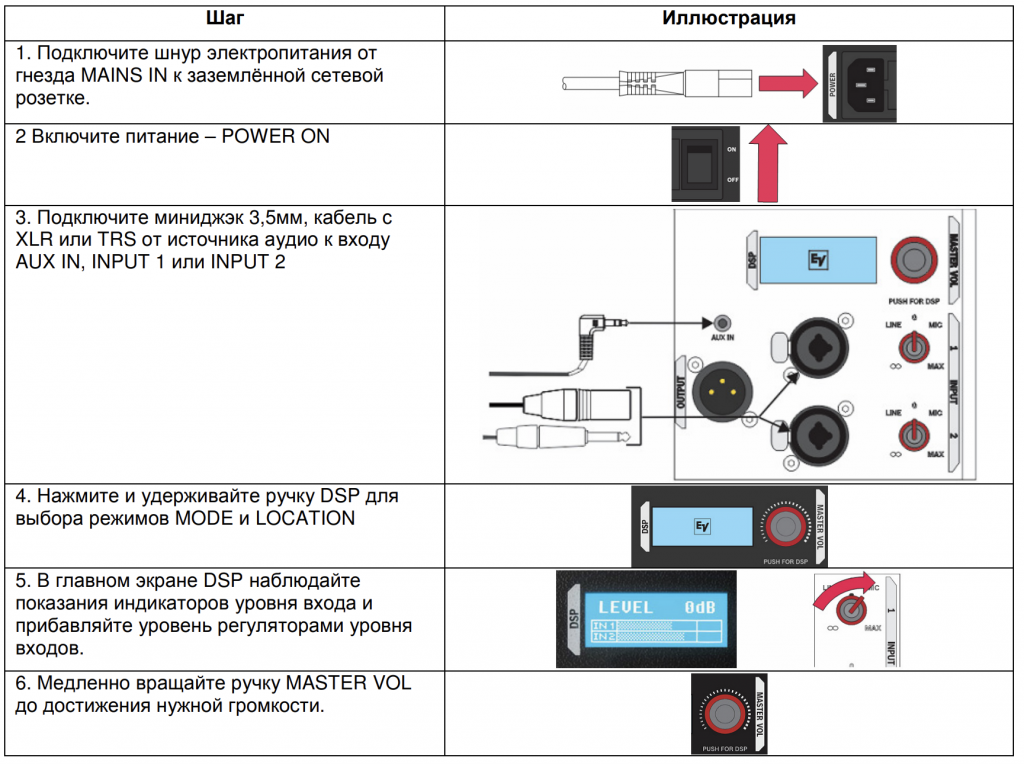

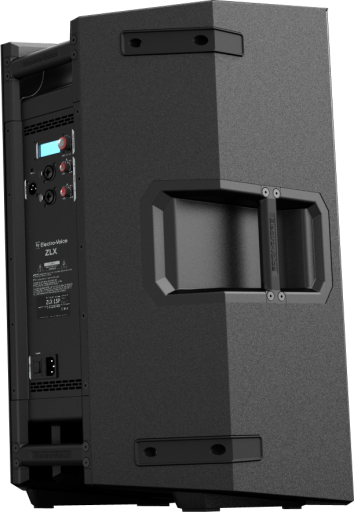

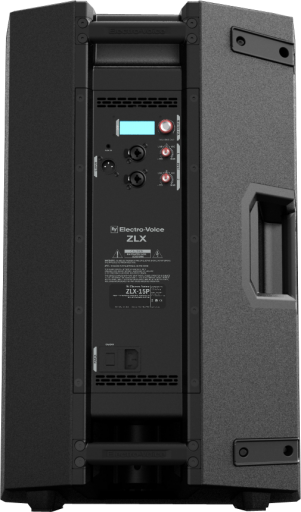

The ZLX amplifier has a range of controls and connections for maximum flexibility systems.

- LCD-DSP interface for control and monitoring.

- MASTER VOL—Rotate the knob to the right to increase the volume or to the left to decrease volume.

DSP—Press and hold the MASTER VOL knob to enter DSP settings. Rotate the knob

MASTER VOL to cycle through menu items. Press the MASTER VOL knob again to select a menu item.

- AUX IN—3.5 mm jack input for connecting external audio devices such as MP3 players.

- INPUT LEVEL—Level adjustment knob for adjusting the sensitivity of an individual input. Level adjustment of LINE and MIC inputs is available for both INPUT 1 and INPUT 2.

- LINK OUTPUT—The output on the XLR connector sends the sum of all input signals to another speaker or subwoofer.

- XLR/TRS INPUT—Balanced input for connecting sources such as mixers, instruments, or microphones. ¼" TRS or XLR connectors are used.

- MAINS IN—connects to AC power via an IEC connector. The ZLX amplifier operates at a mains voltage of 100V-240V (+-10%).

- POWER—power switch to turn the speaker on and off. The LCD screen lights up when POWER is ON.
