1927, Indiana. In the basement of a tire factory, several men in felt hats study blueprints. These were the first steps in the emergence of the global Electro-Voice brand. EV is a classic example of the American rags to riches tale, as today the company is considered one of the market leaders in audio equipment, speaker systems, microphones and radio systems, and its products are used all over the world. EV, a leading player in the audio technology market, equips cultural and sports institutions, churches, cinemas, clubs, theatres, train stations, airports and other public buildings throughout the world.

And today, EV maintains its reputation as one of the best manufacturers of audio products and developer of new technologies. Today the company is a Telex Communications brand and its technology is used in other Telex brands such as Dynacord, Klark-Teknik, Midas, RTS and TELEX.

1934 - EV invents the AC hum-cancelling microphone coil, which is still in use today, 70 years later.

1940 - The microphone is equipped with an interference absorber, EV technologies bring revolutionary changes to the communication systems of aviation and tank forces.

1954 - EV developed "Variable-D" (bass control) technology to reduce low-frequency noise when using common unidirectional microphones. This allowed for clearer sound when using the microphone in churches for worship, conference rooms and other similar places.

1963 - EV receives the Academy of Science and Cinematography Award for his invention of the 642 Cardiline microphone, which significantly improved the sound quality of film.

1974 EV invents the constant directional sound receiver (CD sound receiver). Thanks to this, for the first time, it was possible to maintain the coverage area when broadcasting over a wide range of frequencies, providing clearer and more uniform sound and better speech perception for the audience.

1986 – EV revolutionizes the concept of enhancing concert sound quality with its Manifold technology. One speaker or subwoofer broadcasts with the performance of four loudspeakers. As a result, less bulky equipment produces 4 times louder and better quality sound, while eliminating distortion associated with the physical location of the speakers.

1990 – EV invents RMD (Ring Mode Docoupling) technology, a unique system that eliminates sound distortion and coloration of the sound by extraneous noise. Sound purity is achieved by minimizing the fundamental resonating frequencies.

2000 – EV invents the latest VOB (Vocal Optimized Bass) technology, which reduces noise at close proximity to the microphone, improves the listener's perception of sound and expands the potential sound of musical instruments. Another revolutionary achievement of the company is the invention of the industry-leading Clearscan wireless technology, which provides fast automatic selection of the best of 10 ultra-high frequency channels.

2001 – EV invents RACE (Real-time Acoustic Cluster Editor) technology, which allows the digital crossover and audio filtering system to be correlated with the actual sound of the speaker. This makes it possible to control and predict the magnitude, phase and directivity of complex loudspeaker antenna arrays.

2002 – EV launches IRIS (Intelligent Remote & Integrated Supervision), which combines remote amplifier control and complex RACE data processing to ensure a perfect match between the acoustic transducer parameters and the electrical parameters on which they depend.

List of produced series and models:

Acoustic systems:

EVI Vari Intense

EVID systems

FRI systems

FRX/FRX+System systems

Loudspeakers MH-series Stadium

Rx-series

Sx-series/SxA-series

T-series

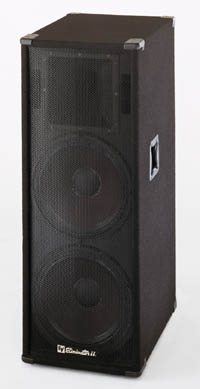

Eliminator i

Xi Series

X-Array

X-line

Xlc

HP Speakers

Amplifiers:

Q-series

Contractor Precision Series

Precision Series

Controllers:

AC One

DX 38 Digital Sound System Processor

RACE software

Wired microphones:

Cobalt Series

RE-Series studio microphones

N/DYM series

RE-90 Series

Radio microphones:

N/DYM Series

RE-1 system

EVI vari Intense

The unique EV EVI Vari intense loudspeakers are designed to avoid the clutter of additional equipment in large rooms. They are an economical solution for permanent installation in rectangular halls. Typically in such rooms, the distance from the speaker to the last row is 2 or more times greater than to the first row, which affects the volume and clarity of sound in the last rows. Loudspeaker VI provides an increase in sound pressure level in the rear rows by 6-8 dB, compensating for the loss of sound without the help of additional equipment. Thus, EV solves a problem as old as time in a new way. EVI is ideal for conference rooms, churches and other places where sound levels need to be distributed evenly throughout the room. The EVI speaker housing is made of 18 mm thick plywood (birch, 13 layers), the grille is treated with metal powder.

To calculate the range of an EVI, the following rough calculation applies: the width of the auditorium should be 2 times its height, and the length should be 3 times its height (see figure below).

EVI Vari Intense – coverage scheme (3-2-1 rule):

If the installation height of the loudspeaker is H, then the length of the sound coverage area will be 3H, the width will be 2H, and the sound coverage of the first row will be 1H.

EVI-28

- two-speaker system with full frequency range

- ventilated woofer

- voice coil (titanium membrane) 1.3 inches thick

- PROTM amplifier protection circuit

- PathTM sync plug

- polygonal body

- built-in low-frequency loudspeakers, sound coverage zone angle up to 500 Hz - 120º (typical - 180º); ideal for resonating rooms.

- 5 holes for suspension with a diameter of 3.8``-16

EVI-12

- two-speaker system with full frequency range

- high sensitivity

- ventilated woofer

- voice coil (titanium membrane) 1 inch thick

- PROTM amplifier protection circuit

- PathTM sync plug

- polygonal body

- 5 holes for suspension with a diameter of 3.8``-16

EVI-15

- two-speaker system with full frequency range

- high sensitivity

- ventilated woofer

- voice coil (titanium membrane) 1 inch thick

- PROTM amplifier protection circuit

- PathTM sync plug

- polygonal body

- 5 holes for suspension with a diameter of 3.8``-16

Technical Specifications:

EVID – Innovative EV Design

- Dual woofer to provide deeper bass, better power distribution and optimal output

- new Coherent Coverage Waveguide loudspeaker design in 4.2 and 6.2 models

- Dual low frequency ports for deeper bass output

- treatment of the coating of low-frequency loudspeakers increases moisture resistance and reliability of the equipment

- durable steel grille with zinc coating

- Strong-Arm-Mount (SAMtm) cast aluminum mounting system ensures the highest strength and reliability of installation.

- The ability to rotate the speakers in the grooves by 90º in the vertical dimension and 100º in the horizontal dimension increases ease of installation.

- Simple hex screw heads make installation quick and easy

- Titanium tweeter housing with neodymium magnetic elements ensures high-frequency clarity and improves weather resistance

- Monolithic ABS housing provides increased strength and acoustic accuracy.

- Rounded shapes and modern design will easily fit into any interior

- Magnetic protection of the transducers allows the speakers to be placed close to sensitive equipment.

New audio design

EVID 3.2/3/2T

- two-speaker system with full frequency range

- ventilated woofers

- voice coil 0.75`` (titanium membrane) with neodymium magnet

- complete protection of HF and LF devices from overload

- ellipsoidal shape ensures greater compactness

- magnetic coating allows the speakers to be used in combination with video equipment

- Strong-Arm-Mount (SAMtm) mounting system ____ and hex key

- mounting holes for suspension using SAMtm; additional mount on the back cover

- S.O.S. sound level control, ¼`` connector, mounted stands for installation on a horizontal surface allow you to install the speaker together with a microphone or monitor

EVID 4.2/4.2T

- two-speaker system with full frequency range

- ventilated woofers

- voice coil (titanium membrane) 1 inch thick with neodymium magnet

- Coherent Coverage Waveguide system is used to eliminate interference

- complete protection of HF and LF devices from overload

- ellipsoidal shape ensures compactness

- magnetic coating allows the speakers to be used in combination with video equipment

- Comes complete with Strong-Arm-Mount (SAMtm) mounting system and hex key

- mounting hole for suspension using SAMtm; additional mount on the back cover

EVID 6.2/6.2T

- powerful two-speaker system with full frequency range

- ventilated woofers

- high sensitivity

- voice coil (titanium membrane) 1 inch thick with neodymium magnet

- Coherent Coverage Waveguide system is used to eliminate interference

- complete protection of HF and LF devices from overload

- ellipsoidal shape ensures compactness

- magnetic coating allows the speakers to be used in combination with video equipment

- Comes complete with Strong-Arm-Mount (SAMtm) mounting system and hex key

- mounting hole for suspension using SAMtm; additional mount on the back cover

EVID 12.1

- separate low-frequency speaker (subwoofer)

- cellular structure of speakers

- dual voice coil, dual amplitude transducer

- high sensitivity

- built-in powerful stereo system

- trapezoidal shape

- Comes complete with mounting bracket for wall or corner mounting (safety factor 8:1 according to EIA 636 testing)

- 1 safety eye bolt 3/8``-16

- holes for suspension and loops 2 x 3/8``

Technical Specifications:

Accessories.

The latest loudspeakers for mounting on a horizontal surface.

 Mounting brackets

AB-34 and AB-64. Set with 360º rotation angle.

The AB-34 and AB-64 kits are 4-sided, powder-coated steel mounting brackets that allow you to mount up to 4 EVID speakers with up to 360º coverage. This mounting structure expands the applications of EVID speakers. The AB-34 mounting bracket is compatible with EVID 3.2 speakers and can be mounted to the ceiling using a rod. The AB-64 connects to EVID 4.2 or 6.2 and can be used in conjunction with a microphone stand or suspended from the ceiling using a rod as shown in the picture. The delivery set includes all necessary accessories and parts.

AB-32 and AB-62. Set with 180º rotation angle.

The AB-32 and AB-62 kits are 2-sided metal-plated mounting brackets that allow you to install up to 2 EVID speakers with a coverage area of up to 180º. The AB-32 mounting bracket is compatible with EVID 3.2 or 6.2 speakers and can be mounted to the ceiling using a rod. The speakers can be mounted at different angles to best suit your installation requirements. The AB-62 mounting bracket is compatible with EVID 4.2 or 6.2 speakers and can be used in conjunction with a microphone stand or suspended from the ceiling using a rod as shown. The delivery set includes all necessary accessories and parts.

Table stands.

Horizontal table stand HS-3 series.

The HS-3 Horizontal Table Stand can be used to mount EVID 3.2 speakers. or 4.2 on tables, shelves, desks and other horizontal surfaces. Ideal for situations where portability and compactness are required. The structure is made of high-strength steel and equipped with rubber feet to protect the surface. The set includes 2 stands.

VS series vertical table stand.

The VS Series Vertical Tabletop Stand can be used to mount any EVID Extended Range speaker. Provides convenient use of speakers on a table, podium, shelf or other flat surface. Ideal for situations where portability and compactness are required. The stand is made of plastic-coated steel and is highly durable and reliable. The set includes 2 stands.

Other accessories.

TC series protective covers for terminals.

TC-4 and TC-6 Series Terminal Covers protect EVID speaker connectors from the long-term effects of moisture. Terminal protective covers are supplied for EVID 4.2 models. and 6.2. The covers easily attach to the back of the speaker and feature a weatherproof cable connector.

Microphone stand holder MA-3.

The MA-3 microphone stand holder allows you to use EVID 3.2 speakers with a standard vertical microphone stand. The design of the holder, consisting of two halves, ensures a reliable connection to the microphone stand.

EVID ceiling speakers.

A smart choice.

No matter where you want to install your speaker, EVID models will fit you either way. Each model is unique and designed to meet specific operating requirements. With superior aesthetics and great sound, EVID in-ceiling speakers are second to none. A variety of speaker models, from the compact and powerful C4.2 to the unique patent-pending C8.2HC dual waveguide speaker designed for high ceilings, cater to any installation requirement. All models meet the NFPA/UL standard for conditioned spaces and can be used for any purpose, including emergency notification. When developing this series, the wishes of both wholesale customers and end users were taken into account, so each model offers first-class sound, easy installation and an affordable price.

Main advantages:

- Acoustically compatible with the EVID series of horizontal surface-mount speakers.

- Compliance with NFPA standards

- The EVID ceiling speaker system can satisfy any aesthetic and technical requirements.

- Possibility of installation in accordance with any conditions and requirements.

- All models are rated at 70V/100V or 8ohm, which is standard for the EVID series, so there is no need to purchase special equipment.

- The kit includes tools that allow installation in almost any conditions. There is no need to buy any expensive mounting systems.

 EVID C4.2

Ideal for ordinary rooms. The advantages of this model are high frequency bandwidth, stealth and aesthetic appeal. Compact dimensions allow the speaker to be installed in small spaces. Can be used in air-conditioned rooms. Beautiful, deep sound is produced by a four-inch waveguide woofer and dual titanium-coated tweeters. The housing has three mounting holes for easy and quick installation. Supplied complete with mounting ring and guide rails. In most cases, no additional accessories are required.

EVID C8.2

Never before has the sound from an in-ceiling speaker been so deep. The special cabinet design and eight-inch subwoofer provide exceptionally strong bass sound. The dual 1-inch waveguide tweeter delivers clear audio up to 18 kHz. Ideal for situations where high quality audio needs to be achieved in a hidden installation. The housing has four mounting holes for easy and quick installation. Supplied complete with mounting ring and guide rails. In most cases, no additional accessories are required. A special version for rooms with low ceilings is also available.

EVID S8.2NS

The EVID C8.2NS speaker is ideal for rooms with high ceilings and high levels of sound reverberation. High clarity sound is provided by a dual waveguide amplifier. The 8.2HC (patent pending) design allows for control of coverage within the voice range and beyond. No other system can provide such high degree of acoustic control, wide frequency response, high input power handling and a compact design. The housing has four mounting holes for easy and quick installation. Supplied complete with mounting ring and guides. In most cases, no additional accessories are required.

EVID C10.1

The large subwoofer-100 and high-quality components provide incredibly deep sound - up to 45 Hz. One of the exclusive ceiling subwoofers for quick installation. Pairs perfectly with any other EVID model. 4 slots for easy and quick installation. Comes complete with support ring and guides. No additional accessories required.

Technical Specifications:

Fri Series

This series features top-notch EV components, including the DH2T compression amplifier and DL-type woofers, which are highly affordable. The Fri series models are the most valuable in situations where flexibility in installation type and high quality are required. The devices are mounted using multiple threaded holes, allowing the installation type to be varied to suit situational requirements. Fri Series models are finished in 13-ply birch plywood with a black acrylic finish and feature a black powder-coated metal grille. The creation of models in this series is based on the principles of safe installation and visual appeal. In addition, the FRI-122/64 and FRI-152/64 have the same height as the FRI-181S (711 mm), maintaining the design consistency of the series.

FRI-2082

- two-speaker system with full frequency range

- ventilated woofer

- voice coil (titanium membrane) 1 inch thick

- design with beveled corners

- bevel at an angle of 45º allows you to mount the speaker under the balcony, on the walls and on the stage.

- Mounting bracket included

- 2 holes for hanging 3/8`` - 16

FRI-122/64

- two-speaker system with full frequency range

- ventilated woofer

- voice coil (titanium membrane) 2 inches thick

- trapezoidal shape (15º side)

- 4 eye bolts included

- 12 holes for hanging 3/8`` - 16

FRI-152/64

- two-speaker system with full frequency range

- powerful bass - up to 42 Hz (-10 dB), providing clear sound throughout the entire range

- ventilated woofer

- voice coil (titanium membrane) 2 inches thick

- trapezoidal shape (15º side)

- 4 eye bolts included

- 12 holes for hanging 3/8`` - 16

FRI-181S

- low-frequency speaker (subwoofer)

- built-in low-pass filter (switches to operating mode with two amplifiers)

- trapezoidal shape (7.5º side)

- 4 eye bolts included

- 16 holes for hanging 3/8`` - 16

Technical Specifications:

FRX+ systems

The FRX+ series systems are designed specifically for rooms where reverberation problems exist and tight control over the direction of sound waves is required. Conventional small speakers are unable to cover the range below 2000 Hz. The large beam width in the lower mid-frequency range is accompanied by serious distortion of the sound of speech and music in such rooms. FRX+ systems solve these problems by providing a high level of control over the direction of wide-frequency audio. With moderate overall dimensions, the speaker allows waves to propagate at small angles (up to 250 Hz) thanks to its coaxial design.

The FRX+ 640/660/940 cabinets are made from 7-ply plywood with a textured finish. The speaker is protected by a black powder-coated steel grille. The FRX-122 has a fabric-covered grille.

FRX-122

- two-speaker system with full frequency range

- ventilated woofer

- voice coil (titanium membrane) 2 inches thick

- PROTM amplifier protection circuit

- Time Path synchronization plug

- asymmetrical loudspeaker directed 40º downwards in relation to the front muffler

- rectangular body

- ultra-flat design allows this model to be used to create Surround systems in cinemas.

- Installation slots – 12 ¼``

FRX+640 (60º x 40º)

FRX+660 (60º x 60º)

FRX+940 (90º x 40º)

- high-power two-speaker system with full frequency range

- High sensitivity 101 dB/1 W/1 m (passive); 109 HF/105 LF

- Coaxial loudspeaker

- Ventilated subwoofer

- voice coil (titanium membrane) 2 inches thick

- trapezoidal shape (side - 15º)

- L-Track equipment (top/bottom)

- Kit includes 2 Ancra single pin mounting fittings

- Hanging holes 3.8``-16 (rear)

- Overall dimensions are similar to those of the FRX-181 model, which ensures a uniform appearance of the series models

- PROTM amplifier protection circuit

- Time Path synchronization plug

- control up to 500 Hz

- DX38 components providing direction control

FRX-181

- low-frequency loudspeaker (subwoofer)

- ventilated housing, direct radiation of sound waves

- trapezoidal shape (side - 15º)

- L-Track equipment (top/bottom)

- Kit includes 2 Ancra single pin mounting fittings

- Hanging holes 3.8``-16 (rear)

- Overall dimensions are similar to those of the FRX-640/660/940, which ensures a uniform appearance of the series models

- Output up to 35 Hz (-10 dB)

- Maximum crossover point of 800 Hz allows use with HP loudspeakers

- Coverage area is more than 100º x 100º at 800 Hz

Technical Specifications:

MH series stadium loudspeakers

The MH Series stadium loudspeakers are designed for large stadiums and arenas where sound clarity and directional control of sound waves from the lower midrange and below are absolutely essential. In 1974, EV pioneered the concepts of constant angle directivity (constant frequency speaker angles) and Manifold technology (combining the output power of multiple transducers into a single speaker). The MH Series large format loudspeakers have multiple built-in speaker/loudspeaker systems. The mid sized MH Series loudspeakers are suitable for smaller spaces or can be used to complement large format loudspeakers.

Medium sized MH series loudspeakers

The mid-size MH series loudspeakers feature high sound quality and unified directivity control at frequencies above 500 Hz. In the mid-bass range, the Aperiodic Enhancer tm phase amplifier is used, which combines the output sound with the sound of the high-frequency part of the speaker. The high-frequency part of the loudspeaker contains a small HP driver of EV's patented Transplanar tm design, which provides an unusually melodic frequency response. The main speaker cone is made of black polyester/fiberglass laminate reinforced with composite materials. Up to three devices can be connected in parallel in active or passive mode without exceeding the amplifier's minimum resistance.

MH640C/MH640P (60° x 40°)

MH660C/MH660P (60° x 60°)

MH940C/MH940P (90° x 40°)

- Dual CD speaker system with powerful mid- and high-frequency sound

- High sensitivity 107 dB/1W/1m

- Coaxial speaker system

- Passive crossover in P versions

- Waterproof epoxy Kevlar coating

- Phase amplifier Aperiodic Enhancer in the MV loudspeaker

- Voice coil (titanium membrane) 2 inches thick

- Tweeter safety circuit

- Uniform sound direction at frequencies above 500 Hz

- All models have the same overall dimensions, which ensures a uniform appearance of the series

- Four pendants made of powder coated steel and polyester coated.

MH series stadium loudspeakers

Large format loudspeakers MH

MH large-format loudspeakers use Manifold technology, which provides high sound quality and the ability to control the directivity of the sound. Thanks to the wide horn connector, the beam width lies in the frequency range above 250 Hz, which prevents bass “mixing” and improves sound clarity. The high-frequency part of the loudspeaker uses a medium-sized HP speaker, to which 2-inch single or dual speakers of any design are connected, allowing the frequency response to be increased up to 20,000 Hz. Tweeters must be ordered separately. The dual speaker doubles the high-frequency sound power, which is important for large spaces. N/DYM speakers provide maximum sound power in the high octaves, which is important in situations where modern music needs to be heard over a long distance. The large horn size provides frequency response up to 100 Hz, eliminating the need to connect additional low-frequency equipment. In the mid-bass section, an Aperiodic Enhancer tm phase amplifier is installed, which provides increased high-frequency characteristics in the mid-bass section. The principle of its operation is based on the fact that at high frequencies only the tip of the cone is in motion, and therefore it automatically adjusts the acoustic load to maximum sound output. The main speaker body is made of solid black polyester and reinforced fiberglass. The internal protective grille built into the Manifold speaker protects it from mechanical damage. To obtain low-frequency sound (1 octave lower), it is recommended to use a low-frequency speaker (subwoofer) Rx 218S

MN 4020 AC (40º x 20º)

MN 6040 AC (60º x 40º)

MN 9040 AC (90º x 40º)

- Dual CD loudspeaker system with high sound power

- Coaxial speaker arrangement

- Highest sensitivity

- Highest maximum sound pressure level

- Sound of the entire frequency range above 100 Hz (-10dB)

- Mid-bass department uses Aperiodic Enhancer tm and Manifold technologies

- Waterproof housing (Kevlar epoxy coated)

- 2" diameter tweeter (various speaker type designs available)

- Controlled sound directionality at all frequencies down to low

- Identical overall dimensions of the models, ensuring a unified appearance of the series

- 18 hanging devices (polyester and powder coated steel) provide a variety of installation options

Technical Specifications:

 RX-series

This series is designed as a flexible linear audio system driven by P-series amplifier controllers based on the world famous Precision Series TM. The RX Series models are built with the finest EV components, including the DH7 driver, which uses the same 3.5-inch driver as the popular ND-5 driver found in the X-ArrayTM Series. There are also new components in this series, including an ergonomic carrying handle that makes carrying easier, more comfortable and safer than using conventional handles. Precision TM amplifier controllers are the best choice for use with the RX series, but other high quality amplifiers can be used with an external controller (such as the DX 38). The RX Series models are best suited for situations where portability and professional audio quality are required, or where professional audio quality is required in indoor environments. RX Series models are constructed from black painted 18-ply plywood and are protected by a black powder coated metal grille mounted on a foam base. All low-frequency speakers (subwoofers) have an M20 meter pin built into the handle for mounting. It is also possible to install a steel rod M20 (PCL 880) with thread. All low-frequency speakers (subwoofers) can be equipped with wheels for transportation. The upper cabinets of the RX series models and the RX 218 S woofers (subwoofers) are equipped with mounts for L-Track equipment, used to move the loudspeakers through the air. The L-Track is mounted on the top and bottom of the RX 112/75 and RX 115/75 models. Two L-Track units are mounted on the top side of the RX 212/75 and the side of the RX 218 S. The new asymmetrical rotating CD loudspeaker allows the RX to be moved in horizontal, inverted and vertical positions (except for the RX 212/75, which only has an acoustic design horizontal use). The operating mode of the height speakers (passive or with two amplifiers) is easily selected on the external connection panel. The RX 112/75 and RX 115/75 also feature integrated 35mm mounting pins and can be used as floor-standing systems.

RX 112/75

- two-speaker system with full frequency range and powerful sound

- high sensitivity

- ultra linear frequency characteristics

- unified bass sound up to 46 Hz (-10 dB)

- ventilated woofer

- asymmetrical CD loudspeaker, tilted downwards by 10º

- voice coil (titanium membrane) 3.5 inches thick

- safety chains for tweeter and woofer speakers

- convenience of selecting the operating mode from the external panel

- 5-sided polygonal housing with monitor tilt

RX 115/75

- two-speaker system with full frequency range and powerful sound

- high sensitivity

- ultra linear frequency characteristics

- unified bass sound up to 48 Hz (-10 dB)

- ventilated woofer

- asymmetrical CD loudspeaker, tilted downwards by 10º

- voice coil (titanium membrane) 3.5 inches thick

- safety chains for tweeter and woofer speakers

- convenience of selecting the operating mode from the external panel

- 5-sided polygonal housing with monitor tilt

- the length of the front panel is the same as that of the RX 118 and RX 215 models, which ensures a uniform appearance of the series models

RX/RxH 212/75

- two-speaker system with full frequency range and powerful sound

- high sensitivity

- ultra linear frequency characteristics

- unified bass sound up to 48 Hz (-10 dB)

- ventilated woofer

- asymmetrical CD loudspeaker, tilted downwards by 10º

- voice coil (titanium membrane) 3.5 inches thick

- safety chains for tweeter and woofer speakers

- convenience of selecting the operating mode from the external panel

- trapezoidal shape (angle 10º)

RX 118 S

- low-frequency speaker (subwoofer)

- ventilated housing, direct radiation of sound waves

- high sensitivity

- unified bass sound up to 36 Hz (-10 dB)

- rectangular shape

- equipped with additional components (see below)

rx 215s

- low-frequency speaker (subwoofer)

- ventilated housing, direct radiation of sound waves

- high sensitivity

- highest performance

- rectangular shape

- equipped with additional components (see below)

RX 218 S

- low-frequency speaker (subwoofer)

- ventilated housing, direct radiation of sound waves

- high sensitivity

- uniform bass sound up to 35 Hz (-10 dB)

- rectangular shape

- fits perfectly with large format loudspeakers of the HP and MH series

- equipped with additional components (see below)

controller-amplifier P 1202 with built-in RX modules

Precision series amplifiers are specifically designed for use with Rx Series models and provide maximum audio power, ultra-linear frequency response, and safety optimizations based on dynamic EV limiter and VCP (voice coil protection circuit).

Additional components for low-frequency speakers (subwoofers) RX

1. rubber stands

2. carrying handle

3. set of wheels

Technical Specifications:

Series SX tm

Thanks to EV, lightweight, compact and powerful speakers with foam inserts, rounded contours, concave drivers and suspension points have become increasingly popular. Foam inserts provide a minimal level of resonance. The sensitivity of the SX systems (SX 300 and SX 500) reaches up to 100 dB/1 W/1 m (the SX 300 system has an interference neutralizer), and the PI(X) series is specially designed for use in open spaces. The unique shape of the Varipath tm loudspeaker allows the sound from the speaker to reach even the corners of rooms. Array brackets and dedicated mounting systems provide easy mounting of loudspeakers in a variety of configurations. The dimensions and location of the suspension points of the SX 100, SX 300 and Sb 121 models are identical, which ensures a unified appearance of the models in the series. The SX 80 models are made of high-strength monolithic polystyrene and are designed to be mounted on the SX 80 SM vertical stand, supplied separately. The black structured surface can be painted in a different color. Additional accessories can be used with the SX 100/300 and Sb 121 (SH Sx300 – protective cover and F200 – speaker stand). All appliances are protected by a perforated powder-coated metal grille mounted on a foam base.

SX 80

- two-speaker system with full frequency range

- ventilated subwoofer

- voice coil (titanium membrane) 1 inch thick

- PROTM amplifier safety circuit

- Varipath type tweeter

- trapezoidal shape

- Compact dimensions

- Inserts 7 x M6 and 4 x M5

- An overview of the options is given in the corresponding table

Sb 121

- Subwoofer (subwoofer)

- ventilated housing, direct radiation of sound waves

- trapezoidal shape (25º side)

- recommended low frequency for filtering 100-200 Hz (12 dB/oct)

- mounting brackets 4 x M8 x 1.25

SX 100+

- two-speaker system with full frequency range

- Ventilated subwoofer

- voice coil (titanium membrane) 1.3 inches thick

- PROTM amplifier protection circuit

- Varipath type tweeter

- Trapezoidal shape (25º side)

- Phys. Same performance as SX 300, but slightly less sensitive

- mounting brackets 4 x M8 x 1.25

SX 300

- two-speaker system with full frequency range

- high sensitivity

- ultra-linear frequency response

- Ventilated subwoofer

- voice coil (titanium membrane) 1.3 inches thick

- PROTM amplifier safety circuit

- Varipath HF horn

- Trapezoidal shape (25º side)

- mounting brackets 4 x M8 x 1.25

- An overview of the options is given in the corresponding table

SX 250

- two-speaker system with full frequency range

- enhanced bass characteristics

- 15`` DL subwoofer

- titanium membrane 1.3 inches thick

- 80 x 55 degree coverage pattern

- 18 mm plywood insert

- “Rough” finish FUTURA tm

- pentagonal polygonal body

- vertical stand

- SK-1 suspension kit available on request

SX 500+

- two-speaker system with full frequency range

- high sensitivity

- small ventilated woofer

- Asymmetrical CD speaker with 10º downward tilt

- voice coil (titanium membrane) 2 inches thick

- PROTM amplifier safety circuit

- tweeter using Varipath technology

- Switch on via switch

- Polygonal body

- Mounting brackets 8 x M8 x 1.25

SX 500 PI+

- has all the functionality of the SX 500+, but is suitable for all weather conditions

- weatherproof woofer (DL 155x-W)

- polyester waterproof protective coating

- foam inserts are included for additional protection against water ingress

SX 600 PI

- vertical housing consisting of two components

- very high sensitivity (105 dB/1 W/1 m)

- high clarity sound

- two 12-inch woofers

- DH2T speaker in a Varipath loudspeaker with a coverage area of 65 x 65 degrees

- weatherproof housing

- convenient SuperSAM mounting system (60 x 180 degrees)

- waterproof SJO connecting cable with gland nut

- it is possible to use an internal 600 W transformer (SX 600 PIX)

Additional information for the SX tm series

Technical Specifications:
